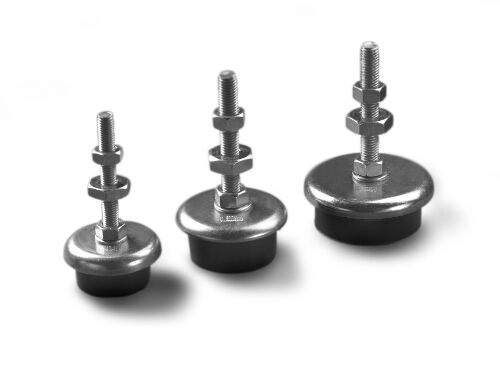

SV-type anti vibration mounts are used in cases where light or heavy machines are not fixed to the floor or ground. The height adjustment system can be used to adjust the machines to the required level, thus insulating areas nearby from vibrations and reducing noise. The AMC-Mecanocaucho® type SV comes with a tilting system accommodating uneven surfaces.

UNSPSC Codes: 23153130

Description

The levelling SV-type anti vibration mounts are used in cases where light or heavy machines are not fixed to the floor or ground. Height is adjusted by means of a screw, once the machine has been assembled. The wide contact between the base of the machine guarantees good overall stability.

Lift the machine and insert the mount under it. Insert and turn the screw manually until it can be wound into the thread in the mount . Adjust the height of the machine by turning the screw. When the machine is level , lock the mounts using the checknuts.

SV-drawings

Type

A(mm)

B(mm)

C(mm)

D(mm)

LOAD kg MIN

LOAD kg MAX

Weight(gr)

Code

000

45

23

M-8

48

20

80

91

143001

00

60

28

M-10

81

60

120

235

143002

0

70

34

M-12

89

90

160

350

143003

1

85

32

M-12

89

130

350

456

143004

2

100

40

M-14

109

270

600

702

143005

3

120

37

M-16

116

450

900

954

143006

4

140

55

M-16

116

700

1200

1513

143007

5

160

60

M-16

116

1100

1750

1865

143008

6

180

70

M-24

138

1500

2500

3034

143009

7

210

75

M-24

138

2100

3750

4248

143010

OPERATION AND ASSEMBLY

SV Anti vibration mounts

Height is adjusted by means of a screw, once the machine has been assembled. The wide contact between the base of the machine guarantees good overall stability.

Lift the machine and insert the mount under it. Insert and turn the screw manually until it can be wound into the thread in the mount . Adjust the height of the machine by turning the screw. When the machine is level , lock the mounts using the checknuts.
