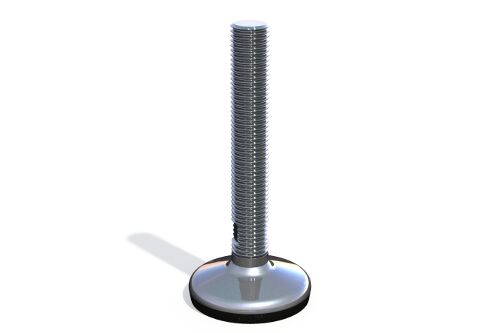

Levelling – H type NGI

Hygienic design, rounded metal parts that allow easy cleaning. The rubber compound is approved for food industry by the FDA.

Maximum inclination 10 degrees.

UNSPSC Codes: 23153130

Description

The levelling h type NGI height adjustment system can be used to adjust the machines to the required level, thus insulating areas nearby from vibrations and reducing noise. Hygienic design, rounded metal parts that allow easy cleaning. The rubber compound is approved for food industry by the FDA.

h-type-ngi-drawing

Type

A(mm)

B(mm)

D(mm)

Load (kg)

Ø

Weight(kg)

Code

H-60 M-12X70

70

31

M-12

700

60

0,191

159051

H-80 M-12X100

100

32

M-12

1500

80

0,317

159052

H-100 M-12X100

100

36

M-12

2000

100

0,904

159053

H-100 M-12X150

150

36

M-12

2000

100

0,575

159054

H-120 M-16X150

150

41

M-16

3000

120

0,545

159055

H-120 M-20X150

150

41

M-20

3000

120

1,01

159056
