Levelling – SM

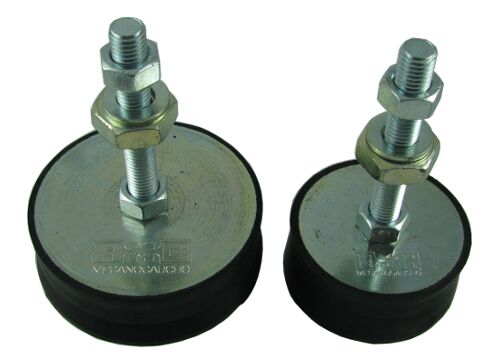

SM -type anti vibration mounts are used in cases where light or heavy machines are not fixed to the floor or ground. The height adjustment system can be used to adjust the machines to the required level, thus insulating areas nearby from vibrations and reducing noise. The AMC-Mecanocaucho® type SV comes with a tilting system accommodating uneven surfaces.

Product Description

The levelling SM type anti vibration mounts are used in cases where light or heavy machines are not fixed to the floor or ground. Height is adjusted by means of a screw, once the machine has been assembled. The wide contact between the base of the machine guarantees good overall stability.

Lift the machine and insert the mount under it. Insert and turn the screw manually until it can be wound into the thread in the mount . Adjust the height of the machine by turning the screw. When the machine is level , lock the mounts using the checknuts.

sm-drawing

Type

A(mm)

B(mm)

C(mm)

D(mm)

LOAD kg MAX

Weight(gr)

Code

S.M.-40

40

18

M-8

48

45

79

146001

S.M.-60

65

28

M-12

89

150

307

146002

S.M.-70

75

29

M-12

89

250

363

146003

S.M.-90

95

30

M-12

89

500

573

146004

S.M.-120

125

31

M-16

116

1000

904

146005
