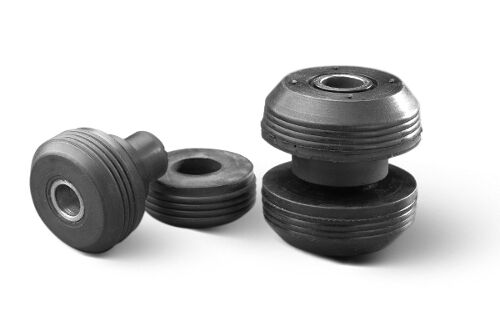

SCH type anti vibration mounts are made of two moulded parts . One of circular fully moulded rubber, and one circular part which is fully bonded to a centre tube which acts as a guide for the machine anchoring bolt. They are installed pre-compressed on the actual machine frame, whose thickness “E” determines the degree of pre-compression of the assembly.

Product Description

This antivibration SCH mount is ideal for applications with major dynamic loadings such as : Off Road Construction vehicles for engines , gearboxes , Operator Cabins where movement control is necessary. It also offers optimal stability, as well as good attenuation of impacts and high frequency vibrations.

sch-drawing

Type

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

F(mm)

G(mm)

Q(mm)

T (Max.)

T (Min.)

Weight(gr)

R(mm)

Shore

Max. Load(kg)

Code

SCH 50

20

31,5

18,5

11

20,5

13,5

49

30,8

14

12,5

153

1,5

45 Sh

80

138501

60 Sh

130

138504

75 Sh

210

138522

SCH 65

23

39,5

24

15

23

17

63,5

38,5

22

19

350

2,5

45 Sh

120

138502

60 Sh

260

138505

SCH 90

25

58

31

17

25

23

88

57

29

25

675

3

45 Sh

260

138503

60 Sh

450

138506

SCH 125

32

64,5

32,5

22

32

27

125,5

64

32

25

1440

3

50 Sh

650

138514

60 Sh

800

138515

arandela_sch

Washers should be used, if the rubber surface is not covered with the contact surface.

Type

Weight(kg)

Øext(mm)

Øint(mm)

THICKNESS(mm)

Code

SCH 50 WASHER

0,051

54

13,5

3

611080

SCH 65 WASHER

0,125

67

16,5

5

606130

SCH 90 WASHER

0,31

96

22

6

608101

SCH 125 WASHER

0,58

125

25

8

610123

Additional Information

Operation & Assembly

The SCH mounts should be assembled according to the following installation instructions. There are two possible configurations, see previous assembly picture. They can be installed in plates of different thicknesses according to the Tmx and Tmin values given in the Table provided . The load vs deformation curves will vary according to the plate thickness in which the mount will be installed.

Washers should be used, if the rubber surface is not covered with the contact surface.
