FZ Sylomer

FZ Sylomer

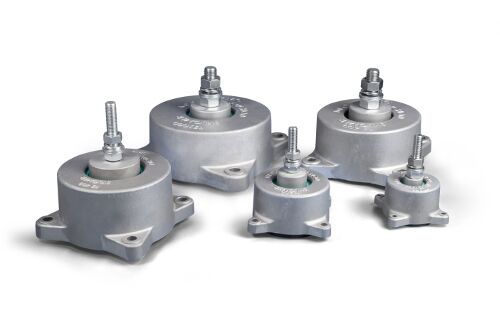

The AMC-MECANOCAUCHO® FZ mounts are composed by two metal parts surrounded by a high resiliency Sylomer® poliurethane compound that offers a high isolation capacity with a small static deformation in all MEDIUM-HIGH frequency range. They have also an interlocking metal component that provides a fail-safe protection. The Sylomer® polyurethane compound is oil resistant and the temperature range of the FZ mounts is -30ºC +70ºC.

UNSPSC Codes: 23153130



Category:

Description



Type

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

F(mm)

G(mm)

H(mm)

I(mm)

K(mm)

Load (kg)

Weight(gr)

Code

FZ-50-27-M10 + KIT NIV

67

46.5

39

28

6.5

52

13

10

26

60

15

311

176293

FZ-50-33-M10 + KIT NIV

67

46.5

39

28

6.5

52

13

10

26

60

25

311

176295

FZ-50-39-M10 + KIT NIV

67

46.5

39

28

6.5

52

13

10

26

60

45

311

176297

FZ-50-45-M10 + KIT NIV

67

46.5

39

28

6.5

52

13

10

26

60

50

311

176281

FZ-50-51-M10 + KIT NIV

67

46.5

39

28

6.5

52

13

10

26

60

50-100

311

176291

FZ-100-45-M12 + KIT NIV

80

56

48

25

6.5

67

13

12

40

60

100-150

464

176299

FZ-100-51-M12 + KIT NIV.

80

56

48

25

6,5

67

13

12

40

60

150-200

464

176301

FZ-200-51-M12 + KIT NIV.

109

72

55

40

8,5

90

15

12

27,5

60

170-280

978

176311

FZ-200-57-M12 + KIT NIV.

109

72

55

40

8,5

90

15

12

27,5

60

280-400

978

176321

FZ-200-57-M14 + KIT NIV.

109

72

55

40

8,5

90

15

14

27,5

60

280-400

978

176323

FZ-400-51-M14 + KIT NIV.

155

95

80

65

12,5

125

22

14

28

60

460-800

2461

176331

FZ-400-57-M16 + KIT NIV.

155

95

80

65

12,5

125

22

16

28

60

800-1000

2461

176341

FZ-600-51-M18 + KIT NIV.

175

94

80

65

14

140

23

18

28

60

1000-1200

3077

176351

FZ-600-57-M20 + KIT NIV.

175

94

80

65

14

140

23

20

28

60

1200-1500

3077

176361

FZ-1000-57-M20 + KIT NIV.

205

95

80

65

16

162

28

20

28

60

1500-2000

3751

176371

FZ-50-27-M10

67

46.5

39

28

6.5

52

13

10

26

–

15

260

176294

FZ-50-33-M10

67

46.5

39

28

6.5

52

13

10

26

–

25

260

176296

FZ-50-39-M10

67

46.5

39

28

6.5

52

13

10

26

–

45

260

176298

FZ-50-45-M10

67

46.5

39

28

6.5

52

13

10

26

–

50

260

176282

FZ-50-51-M10

67

46.5

39

28

6.5

52

13

10

26

–

50-100

260

176292

FZ-100-45-M12

80

56

48

25

6.5

67

13

12

40

–

100-150

380

176300

FZ-100-51-M12

80

56

48

25

6,5

67

13

12

40

–

150-200

380

176302

FZ-200-51-M12

109

72

55

40

8,5

90

15

12

27,5

–

170-280

868

176312

FZ-200-57-M12

109

72

55

40

8,5

90

15

12

27,5

–

280-400

868

176322

FZ-200-57-M14

109

72

55

40

8,5

90

15

14

27,5

–

280-400

868

176324

FZ-400-51-M14

155

95

80

65

12,5

125

22

14

28

–

460-800

2253

176332

FZ-400-57-M16

155

95

80

65

12,5

125

22

16

28

–

800-1000

2253

176342

FZ-600-51-M18

175

94

80

65

14

140

23

18

28

–

1000-1200

2756

176352

FZ-600-57-M20

175

94

80

65

14

140

23

20

28

–

1200-1500

2756

176362

FZ-1000-57-M20

205

95

80

65

16

162

28

20

28

–

1500-2000

3348

176372

TECHNICAL CHARACTERISTICS

  • The AMC-MECANOCAUCHO FZ mounts incorporate interlocking metal component that provide a fail-safe protection for mobile applications. This device limits the ascending vertical movement when the mounting is submitted to shocks at traction.
  • The thickness of the metal parts are robust and are suitable for off road applications.The metal parts have a suitable anti-corrosive treatment for outdoor applications.
  • The Sylomer® polyurethane compound is oil resistant and the temperature range of the FZ mounts is 30 ºC +70ºC

Additional information

Applications

FZ mounts have been primarily designed for mobile applications. They are often used for the isolation of sensitive equipment embarked on vehicles submitted to shocks.
