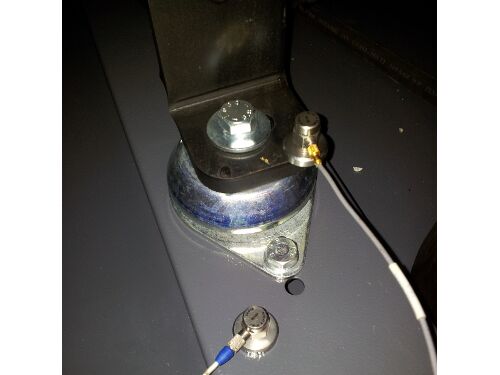

BSB - Image 2

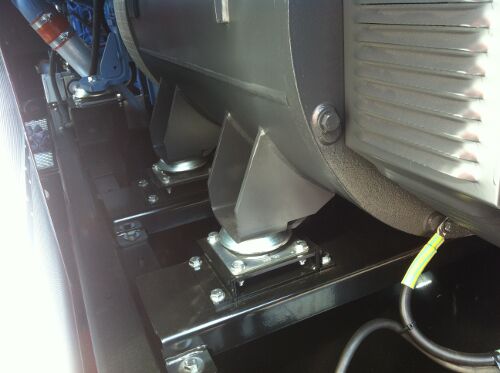

BSB - Image 3

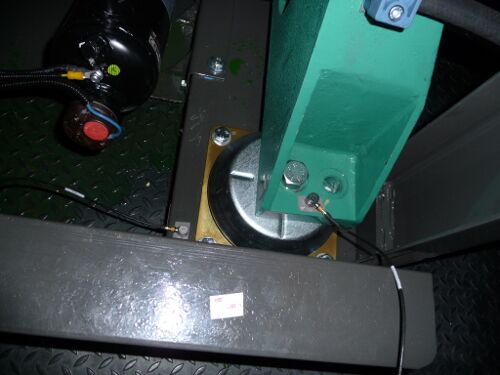

BSB - Image 4

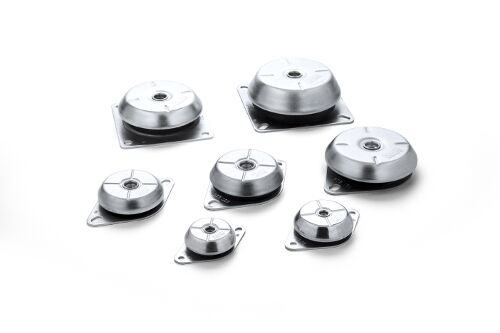

BSB

BSB engine anti vibration mounts are anti vibration elements which work the rubber in shear and compression with an optimal ratio of stiffness and horizontal stability. These engine mounts are really applicable when stability is a priority in an anti vibration suspension. In applications where the degree of isolation is the priority we thoroughly recommend the use of BRB captive mount.

UNSPSC Codes: 23153130

Category:

Description



BSB-drawing

Type

A(mm)

B(mm)

C(mm)

D1 (Min.)

D2 (Max.)

E(mm)

F(mm)

G(mm)

Weight(gr)

Load (kg)

Shore

Code

BSB 60

64

34

M-10

76,5

90,5

110

9

2,5

235

70

40 Sh

135106

130

50 Sh

135109

170

60 Sh

135107

245

70 Sh

135108

BSB 80 M10

78

31

M-10

108,2

111,2

130

9,2

3

355

110

40 Sh

135261

160

50 Sh

135262

230

60 Sh

135263

300

70 Sh

135264

BSB 80 M12

78

31

M-12

108,2

111,2

130

9,2

3

351

110

40 Sh

135265

160

50 Sh

135266

230

60 Sh

135267

300

70 Sh

135268

BSB 95 M10

92

34

M-10

122

126,4

150

10

3

488

180

40 Sh

135311

230

50 Sh

135312

270

60 Sh

135313

330

70 Sh

135314

BSB 95 M12

92

34

M-12

122

126,4

150

10

3

488

180

40 Sh

135315

230

50 Sh

135316

270

60 Sh

135317

330

70 Sh

135318

BSB 110 M12

106

37

M-12

137

150

175

13

3

785

250

40 Sh

135335

350

50 Sh

135336

450

60 Sh

135337

550

70 Sh

135338

BSB 110 M16

106

37

M-16

137

150

175

13

3

785

250

40 Sh

135150

350

50 Sh

135151

450

60 Sh

135152

550

70 Sh

135153

BSB 125

123

43

M-16

154

162

190

14

4

1109

450

40 Sh

135351

550

50 Sh

135352

690

60 Sh

135353

900

70 Sh

135354

BSB 150 B.C.

156

49

M-16

125

132

164

14,5

4

2060

750

40 Sh

135371

950

50 Sh

135372

1300

60 Sh

135373

1650

70 Sh

135374

BSB 150

156

49

M-16

176

188

218

14,5

4

1818

750

40 Sh

135361

950

50 Sh

135362

1300

60 Sh

135363

1650

70 Sh

135364

BSB 160

156

57

M-20

140

140

170

14,5

4

2200

900

40 Sh

135381

1200

50 Sh

135382

1600

60 Sh

135383

2300

70 Sh

135384

BSB 180

180

67

M-20

149

163

192

14,5

4

3800

1300

40 Sh

135181

1750

50 Sh

135184

2100

60 Sh

135182

2900

70 Sh

135183

BSB 220

230

105

M-24

180

180

220

19

6

6716

2500

40 Sh

135301

3200

50 Sh

135302

4000

60 Sh

135303

5000

70 Sh

135304

TECHNICAL CHARACTERISTICS

  • The top metal hood protects the rubber from the Ozone, UV rays, diesel or oils which may cause major damage to the rubber.
  • The metal parts have a suitable anticorrosive treatment for outdoor applications. RoHs compliant.
  • They have an interlocking metal component that provides a fail-safe protection for mobile applications. This device limits vertical movement when the mounting is submitted to shock inputs.
  • The mounts are clearly identified, as the baseplates are engraved with the type and hardness, which makes it possible to easily recognise the part even after several years of use.
  • The hood has a cross stamped on the top, which enhances its stiffness on mobile applications and also improves the evacuation of oils or liquids that splash onto it.

APPLICATIONS

This anti vibration mount is suitable for mobile rotating machines that require greater control of movement due to axial and radial shock inputs providing reasonable values of vibration and noise attenuation, such as:

– Pumps, Marine-Land auxiliary units, Industrial Vehicles, Compressors, Ventilators…

This mount is suitable for the isolation of mobile rotating machines which are exposed to axial and radial shocks, dripping oil or diesel or exposure to the weather.

OPERATION AND ASSEMBLY

BSB Anti vibration mounts

RECOMMENDATIONS FOR HOOD MOUNTS

The hood mounts should be be installed between two parallel and perfectly flat surfaces. Mounts operating tilted or twisted do not work properly. This may be due to incorrect alignment, tolerances in the building of the chassis or over-tightened torque during the installation of the Antivibration mounts.

This applies to our marine-type, BSB, BRB or Mecanodamp mounts.

ELASTICAL PROPERTIES

BSB Anti vibration mounts
