Acoustic Floor Mat 31

Acoustic Floor Mat 31

Acoustic Floor Mat 31 is based on the elastic material Sylomer® and is an impact noise insulation solution for screeds that are subject to particularly high loads. Typical ranges of use are supermarkets, large kitchens, hospitals, or industrial buildings with particular demands on impact sound reduction.

Category: Acoustic Material

Product Properties AFM 31

Impact sound reduction ∆Lw: 31 dB
Dynamic stiffness st’: ≤ 17 MN/m³
Load range: 5,000 kg/m²
Thickness: 16 mm
Delivery form: 1500×750 mm
Weight by area: 3.0 kg/m2
Compressibility c: ≤ 2 mm
Flammability: Class E
Thermal conductivity λ: 0.06 W/mK
Approval: ETA-17/0243

Overview of Acoustic Floor Mat portfolio

Overview-AFM-Type_31_504x310px

Advantages and benefits

Consistent effectiveness over the entire load range
Low installation height and thus particularly suitable for renovation projects
Quick installation and no need for bonding to the subsurface
Easy handling thanks to low dead weight
Outstanding durability over decades

Data Sheet Acoustic Floor Mat 31 EN

Guideline for the installation of Acoustic Floor Mat en

Tender specification AFM 31 EN

Reference List Floating Floors EN

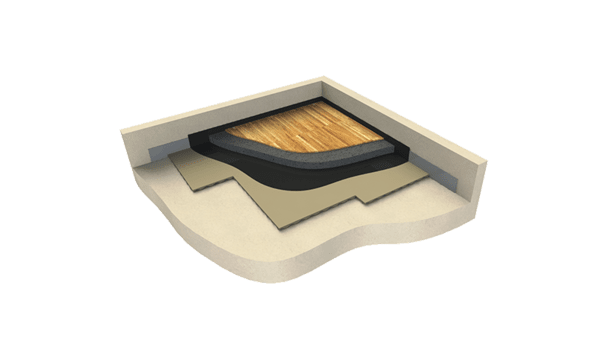

Floor build-up AFM 31
