PAI

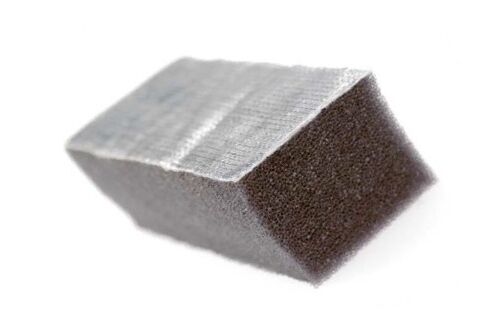

Aluminium facing with fibreglass support and absorbing polyurethane foam.

Category:

Description

Acoustic PAI aluminium

Type

Code

SELF-ADHESIVE

Rw(dB)

Weight(kg)

PAI-15 sheet

26025

17

0,853

PAI-15 A sheet

26170

x

17

1,113

PAI-15 roll

26022

17

0,853

PAI-15 A roll

26172

x

17

1,113

PAI-25 sheet

26026

19

1,155

PAI-25 A sheet

26127

x

19

PAI-25 roll

26023

19

1,155

PAI-25 A roll

26173

x

19

1,415

PAI-40 sheet

26027

19

1,608

PAI-40 A sheet

26171

x

19

1,868

PAI-40 roll

26024

19

1,608

PAI-40 A roll

26174

x

19

1,868

TECHNICAL CHARACTERISTICS

  • Composition

    Aluminium facing with fibreglass support and absorbing polyurethane foam.

  • Thicknesses

    15mm 25mm 40mm

APPLICATIONS

Thermal insulation, M-1 class fire-resistant, good resistance to hydrocarbon damage and not very good acoustic absorber but good isolator.

FORMATS

PAI

  • Sheets

    1200×1000 mm
    15mm thick, 8 Sheets per box.
    25mm thick, 5 Sheets per box.
    40mm thick, 3 Sheets per box.

  • Rolls

    1500mm wide x approx. 20m long



ACOUSTIC PROPERTIES

PAI
