V-Shaped Marine

The V-Marine Mount shape design provides high deflections for relatively low loads. This means that the natural frequency is low and ideal for engines which frequently work at idle speed. It has different stiffness rates in the Vertical , Horizontal and Lateral axes which permits adjustments to the system modes for optimal isolation and stability.

UNSPSC Codes: 23153130

Description

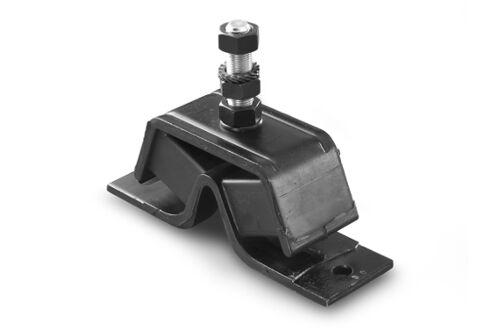

V-shaped marine mount works the rubber section in shear and compression. The V marine mount is comprised of 2 metal parts which permits its installation by means of a stud on the top metal and two holes in the baseplate for securing it to the chassis.

It is used in applications where the load of the suspended unit is low, where high deflection is required to provide high vibration isolation levels. Small vehicles or machines, small and medium-sized gen sets, marine engines; Maximum leveling: 3 mm.



v-marine-drawing

TypeWeight(gr)Load (kg)ShoreCode
V-shaped marine17204040 Sh148001
7550 Sh148003
10060 Sh148004
15070 Sh148006

TECHNICAL CHARACTERISTICS

The AMC-Mecanocaucho® V-Marine Mount shape design provides high deflections for relatively low loads. This means that the natural frequency is low and ideal for engines which frequently work at idle speed. It has different stiffness rates in the Vertical , Horizontal and Lateral axes which permits adjustments to the system modes for optimal isolation and stability.

Maximum leveling: 3 mm

APPLICATIONS

It is used in applications where the load of the suspended unit is low, where high deflection is required to provide high vibration isolation levels. Small vehicles or machines, small and medium-sized gen sets, marine engines ;

ELASTICAL PROPERTIES

V-SHAPED MARINE TYPE

Data Sheet
