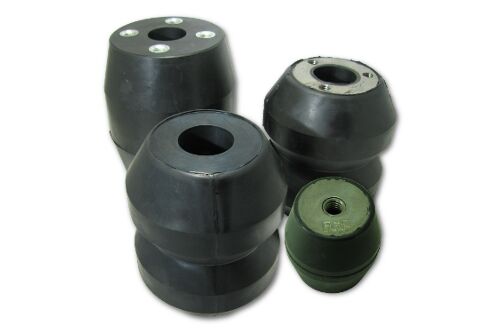

resorte_elastomerico

Elastomeric Spring

Elastomeric Spring anti vibration mounts are ideal for those applications where high vibration isolation is required. Its specific design allows this mount to have high deflection . This feature is particularly useful on those applications where vibration in the vertical sense is predominant.

Product Description

Elastomeric Spring anti vibration mounts are ideal for those applications where high vibration isolation is required. Its specific design allows this mount to have high deflection. This feature is particularly useful on those applications where vibration in the vertical sense is predominant.

The damping properties of the rubber allow to provide a higher motion control of the suspended element. The optimal corrosion properties allow this mount to resist to aggressive corrosion environments.

Elastomeric Spring anti vibration mounts are used in applications where a high degree of isolation is required and also motion control of the suspended element is required, such as : vibrating tables, vibration feeders or suspension of industrial vehicles.


elastomeric-1
Type Weight(kg) Shore LOAD kg MAX Max. Schock Code
RSFF 125 142 1,953 55 Sh 1150 Kg 180251


elastomeric-2
Type Weight(kg) Shore LOAD kg MAX Max. Schock Code
RS 110 132 0,939 60 Sh 450 Kg 1200 Kg 180185


elastomeric-3
Type Weight(kg) Shore LOAD kg MAX Max. Schock Code
RSF 110 132 60 Sh 450 Kg 1200 Kg 180234


elastomeric-4
Type Weight(kg) Shore LOAD kg MAX Max. Schock Code
RSF 55 55 0,123 65 Sh 60 Kg 120 Kg 180177

Tech sheet

Elastomeric Spring
