Buffer, Diabolo - Type C

Buffer, Diabolo – Type C

The rigid buffers used as ends of stroke or to check moving parts give rise to very high stresses at the time of the impact and therefore to rapid deterioration, accompanied by an often unacceptable noise, particularly when these impacts are repeated periodically. The elastic buffers get rid of these drawbacks completely, as they are soundproofed with rubber. The single buffer is a flat surface of rubber and therefore responds immediately to impact, without over-extending the stroke of the moving organ. The progressive buffer has a conical form in the rubber, and therefore makes contact on a progressive surface, which increases with crushing. The action is more gradual and is particularly good for a considerable absorption of energy, without a prohibitive instant stress.

UNSPSC Codes: 23153130

Category:

Description

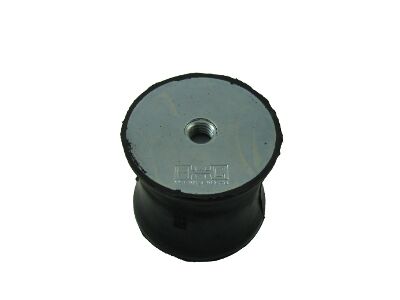

Buffer Diabolo type C

Female mounting thread.

diabolo-buffers-type-c-drawing

Type

A(mm)

B(mm)

C(mm)

Weight(kg)

Static Load max. daN

Dynamic Load max. daN

Dynamic Deflection mm

Static Deflection mm

Code

F.3

30

23

M-8

0,036

40

90

9

5

114011

F.7

44

42

M-8

0,066

50

100

10

6

114012

F.1

60

44

M-8

0,098

40

100

10

4

114013

F.2

60

44

M-8

0,117

75

200

12

5,5

114014

F.4

60

60

M-10

0,204

150

350

15

8

114015

F.8

60

31

M-10

0,127

100

275

14

7

114016

F.5

80

65

M-14

0,445

300

800

16

9,5

114017

F.6

95

70

M-16

0,673

400

1000

18

9,5

114018



TECHNICAL CHARACTERISTICS

The elastic buffers are made with a compound of rubber which permits major deformations with notable absorptions of energy. They can be made with high-damping rubber to order. The absorption of energy is performed thus, irreversibly and opposes the rebound phenomenon.

APPLICATIONS

As buffers: In any case for limiting a flexible element.

  • End of stroke of spring or damper.
  • End of stroke of cranes and hoists.
  • Setting of fragile material in packings.

OPERATION AND ASSEMBLY

DIABOLO BUFFERS TYPE C

The elastic buffers can be used in these two possibilities:

  • As Actual buffers: The impact takes place as an end of stroke, taking into account the maximum deflection the stop may give.
  • As elastic mounts. When installed as elastic mounts, the buffers may be screwed to the base of the machine so that its flat surface rests directly on the floor or ground.

ADVANTAGES

  • Easy to install in all cases.
  • Great efficacy when used as mount or as buffer.
  • Possibility of moving the machines, which are not secured to the floor or ground, or of moving the buffers to different points where ends of stroke may be made.

Data Sheet
