Bobbin – Type A

Bobbins are devices for making elastic anchorings or fixings. They can be used in a wide variety of applications, particularly for elastic suspensions and anti vibration isolation of machines and different mechanical organs. They are made of a block of rubber with two parallel metal parts at the end which enable it to be fixed either by screws in the ‘’C’’ model or with nuts in the ‘’A” model or a combination of both in the ‘’B” model.

UNSPSC Codes: 23153130

Category:

Description

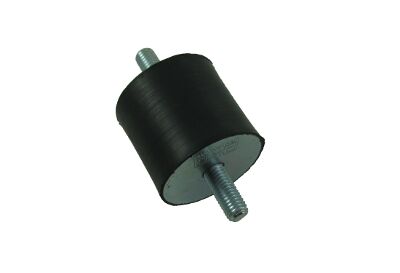

Bobbin type A

Male threaded mounts, both ends.

bobbins-type-a-drawing

Standard rubber and steel

Type

A(mm)

B(mm)

C(mm)

H(mm)

Weight(kg)

COMPRESSIONLOAD Max. daN

COMPRESSION DEFLECT. mm

SHEAR LOAD Max. daN

SHEAR DEFLECT. mm

Code

BOBBINS TYPE A 12-25

12,5

10

M-5

10

0,006

12

2

1,5

1,5

120001

12,5

15

M-5

10

0,007

10

3

1,5

2

120002

12,5

20

M-5

10

0,008

8

3,5

1,5

4

120003

16

10

M-5

12

0,01

20

1,5

2,5

1,5

120011

16

15

M-5

12

0,011

20

3

2,5

2

120012

16

20

M-5

12

0,012

15

4

2,5

4

120013

16

25

M-5

12

0,013

15

5

2

5

120014

20

8,5

M-6

16,5

0,016

40

1,5

5

1

120021

20

15

M-6

16,5

0,018

35

4

5

2,5

120022

20

20

M-6

16,5

0,019

30

5

5

3,5

120023

20

25

M-6

16,5

0,02

30

5,5

4,5

4,5

120024

20

30

M-6

16,5

0,022

25

7

4,5

4,5

120025

25,5

10

M-6

18

0,032

80

2

8

1,5

120171

25,5

15

M-6

18

0,032

60

3,5

8

2,5

120172

25,5

20

M-6

18

0,039

55

4,5

8

3,5

120173

25,5

25

M-6

18

0,041

50

6

8

4,5

120174

25,5

30

M-6

18

0,043

50

8

8

6

120175

25,5

10

M-8

20

0,034

80

2

8

1,5

120026

25,5

15

M-8

20

0,04

60

3,5

8

2,5

120031

25,5

19

M-8

20

0,04

55

4,5

8

3,5

120032

25,5

22

M-8

20

0,042

50

5,5

8

4

120033

25,5

25

M-8

20

0,043

50

6

8

4,5

120034

25,5

30

M-8

20

0,046

50

8

8

6

120035

25,5

40

M-8

20

0,053

50

10

10

6

120036

S TYPE A 30-50

30

15

M-8

20

0,049

90

3

11

2,5

120041

30

22

M-8

20

0,053

80

5

11

4

120042

30

25

M-8

20

0,056

75

6,5

11

5

120186

30

30

M-8

20

0,059

70

8

11

6

120043

30

40

M-8

20

0,066

60

9

11

7,7

120044

40

20

M-8

20

0,086

160

5

20

3

120193

40

25

M-8

20

0,1

150

6

20

3,5

120194

40

28

M-8

20

0,106

150

6

20

5,5

120195

40

30

M-8

20

0,113

150

6

30

5,5

120196

40

35

M-8

20

0,117

120

8

20

6,5

120197

40

40

M-8

20

0,123

120

10

20

7,5

120198

40

45

M-8

20

0,134

120

11

20

9

120199

40

20

M-10

25

0,1

160

5

20

3

120051

40

25

M-10

25

0,104

150

6

20

3,5

120191

40

28

M-10

25

0,111

150

6

20

5,5

120052

40

30

M-10

25

0,117

150

6

30

5,5

120192

40

35

M-10

25

0,121

120

8

20

6,5

120053

40

40

M-10

25

0,128

120

10

20

7,5

120054

40

45

M-10

25

0,137

120

11

20

9

120055

50

20

M-10

25

0,128

300

5

25

3,5

120201

50

25

M-10

25

0,132

300

6

25

4,5

120061

50

30

M-10

25

0,148

275

7

25

6,5

120202

50

35

M-10

25

0,153

250

8

25

7

120062

50

40

M-10

25

0,169

210

10

25

8

120203

50

45

M-10

25

0,179

190

11

25

9

120063

50

50

M-10

25

0,199

170

11

25

10,5

120204

50

60

M-10

25

0,21

150

11

25

12

120064

TYPE A 60-95

60

25

M-10

25

0,207

400

6

30

4,5

120071

60

36

M-10

25

0,241

300

9

30

7

120072

60

45

M-10

25

0,269

250

11

30

9

120073

60

60

M-10

25

0,315

200

12

30

10

120074

70

35

M-10

25

0,322

450

8

35

6,5

120081

70

50

M-10

25

0,38

350

11

35

11

120082

70

60

M-10

25

0,423

300

12

35

13

120083

70

70

M-10

25

0,485

300

14

35

15

120084

75

25

M-12

30

0,32

650

7

37

5

120091

75

40

M-12

30

0,402

500

9

37

7

120092

75

45

M-12

30

0,423

500

10

37

9

120093

75

55

M-12

30

0,468

450

11

37

11

120094

80

30

M-14

35

0,503

950

7

40

5

120101

80

40

M-14

35

0,561

600

9

40

7

120102

80

50

M-14

35

0,606

550

10

40

8

120103

80

55

M-14

35

0,571

550

11

40

9

120104

80

70

M-14

35

0,71

500

13

40

15

120105

80

75

M-14

35

0,737

450

14

40

16

120106

95

40

M-16

45

0,803

1200

8

60

7

120111

95

55

M-16

45

0,932

1000

11

60

8

120112

95

60

M-16

45

0,971

800

12

60

10

120113

95

75

M-16

45

1,148

700

13

60

14

120114

INS TYPE A 105-150

105

50

M-16

45

1

1200

9

80

9

120121

105

75

M-16

45

1,283

1000

13

80

14

120122

105

100

M-16

45

1,493

800

16

80

16

120123

120

50

M-16

45

1,153

1500

9

100

9

120131

120

75

M-16

45

1,568

1200

13

100

14

120132

120

100

M-16

45

1,903

1000

16

100

16

120133

130

50

M-16

45

1,658

1600

9

120

9

120142

130

75

M-16

45

2,105

1450

13

120

14

120143

130

100

M-16

45

2,492

1200

16

120

16

120144

150

50

M-20

50

2,268

1800

9

140

9

120151

150

75

M-20

50

2,808

1650

13

140

14

120152

150

100

M-20

50

3,356

1400

16

140

16

120153

Stainless steel

bobbins-type-a-drawing

Type

A(mm)

B(mm)

C(mm)

H(mm)

Weight(kg)

COMPRESSIONLOAD Max. daN

COMPRESSION DEFLECT. mm

SHEAR LOAD Max. daN

SHEAR DEFLECT. mm

Code

BOBBINS TYPE A 12-25 STAINLESS STEEL

20

20

M-6

18

0,019

30

5

5

3,5

120301

20

20

M-6

18

–

30

5,5

4,5

4,5

120302

25

25

M-6

18

–

55

4,5

8

3,5

120303

25

30

M-6

18

–

50

8

8

6

120304

30

20

M-8

23

0,055

80

5

11

4

120305

30

30

M-8

23

–

70

8

11

6

120306

40

30

M-8

23

0,092

150

6

30

5,5

120307

40

40

M-10

28

0,131

120

10

20

7,5

120308

50

25

M-10

28

–

300

6

25

4,5

120309

50

35

M-10

28

–

250

8

25

7

120310

50

45

M-10

28

–

190

11

25

9

120311

60

35

M-10

28

–

300

9

30

7

120312

60

45

M-10

28

0,255

250

11

30

9

120313

60

60

M-10

28

0,304

200

12

30

10

120314

70

45

M-12

37

0,376

350

11

35

11

120315

TECHNICAL CHARACTERISTICS

Depending on the size of the rubber block, the AMC Mecanocaucho® bobbing has more or less elasticity, which is greater particularly in all directions perpendicular to its axis (shear). The AMC Mecanocaucho® bobbing thus makes it possible to make joins which permit major relative movements, up to several millimetres (in the case of heat expansion, chassis deformations, etc.). The AMC Mecanocaucho® bobbing serves very well for the vibration isolation of machines where the vibrations are perpendicular to their axis, unless these stresses are too much when applied in this direction.

APPLICATIONS

The AMC Mecanocaucho® bobbins are particularly suitable for installation on small motor-pumps, motor-ventilators, driers, sieves, compactors, washing machines, electrical motors, on-board control panels, measuring apparatuses, control cabinets, microphones, fluorescent tubes, etc.

OPERATION AND ASSEMBLY

AMC MECANOCAUCHO® BOBBINS TYPE A

Its elasticity is much greater in all the directions parallel to the armatures than in the perpendicular direction. The rubber works based on compression or shear depending on the direction it is placed at installation time. This direction is made according to the use and the objective. It is therefore installed with nuts or screws depending on the model chosen, with one part attached to the fixed chassis and the other to the machine to be suspended.

ADVANTAGES

  • Easy to install.
  • High elasticity (particularly transversal).
  • Economical.
