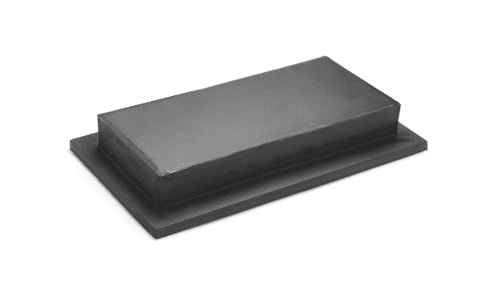

Heavy Load Mount – Type S

Type S mounts for heavy loads

Product Description

Anti-vibration, heavy load type S mount, the solution against noise and vibration

type-s-drawing

Type

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

F(mm)

DEFLECTION mm

Load (kg)

Weight(kg)

Code

L-40

300

40

20

350

140

200

5

15000

10,186

141021

L-50

300

50

30

350

140

200

5

13000

10,186

141022

L-60

300

60

40

350

140

200

5

11000

10,6

141023

L-70

300

70

50

350

140

200

5

9000

10,186

141024

Tech sheet

Heavy load type S mount
