Anti seismic Visco

Anti Seismic Visco

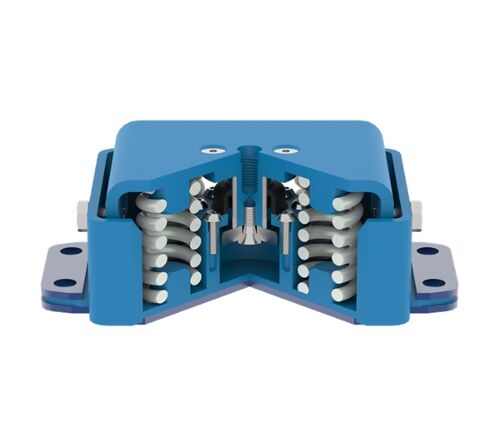

The Anti seismic Visco  mounts with viscous damper spring mountings are ideal for applications where the highest isolation degree and stability is a must. Its specific design allows a very easy installation and no maintenance is required on the damping system.

Category:

Description

The Antiseismic with viscous damper spring mountings, the lateral buffers incorporate a combination of Sylomer and steel, structurally capable of withstanding to high lateral forces that occur on seismic events.

A layer of Sylomer underneath the mount allows isolation to high frequencies capable of getting through the steel coil springs, allowing a high isolation of noise.

The viscous damper allows critical dampening ratios of above 30%.

The mount is coated in Cataphoreses electro coating to resist at extreme corrosive environments.

antisismico_visco-drawing



Type Code No. Springs Spring color DEFLECTION mm Max. Load(kg)
ANTI SEISMIC VISCO 21256 4 PURPLE 22 1220
21255 4 GREEN 22 1620
21257 4 GREY 22 2160
21258 4 WHITE 22 2448
21259 4 RED 22 3212


Additional information

Applications

This spring mount is suitable for those applications that require greater vibration isolation and movement control, such as:

– Emergency generator sets on Hospitals, data bank organizations or residential areas.
– Pumps or piston compressors that have high eccentricity where a mass of inertia cannot be installed.
– HVAC equipment on Hospitals or residential areas.

This mount is suitable for the isolation of static rotating machines which are exposed to axial and radial shocks, dripping oil or diesel or exposure to the weathering.
