Acoustic Floor Mat 33

Acoustic Floor Mat 33 is based on the elastic material Sylomer® and is an especially effective impact noise insulation solution for screeds that are subject to particularly high loads. Thanks to its 3D profiling, the AFM 33 is highly elastic, particularly resistant to ageing and moisture, and free from harmful plasticisers. Typical ranges of use are under floating, heated or unheated screeds and under mastic asphalt.

Category:

Product properties AFM 33

  • Impact sound reduction ∆Lw: 33 dB
  • Dynamic stiffness st’: ≤ 13 MN/m³
  • Load range: 2,500 kg/m²
  • Thickness: 16 mm
  • Delivery form: 1500×750 mm
  • Weight by area: 2.5 kg/m2
  • Compressibility c: ≤ 2 mm
  • Flammability: Class E
  • Thermal conductivity λ: 0.05 W/mK
  • Approval: ETA-17/0243

Overview of Acoustic Floor Mat portfolio

Overview-AFM-Type_33_504x310px

Advantages and benefits

  • Consistent effectiveness over the entire load range
  • Low installation height and thus particularly suitable for renovation projects
  • Quick installation and no need for bonding to the subsurface
  • Easy handling thanks to its light dead weight
  • Outstanding durability over decades

Data Sheet Acoustic Floor Mat 33 EN

Guideline for the installation of Acoustic Floor Mat en

Tender specification AFM 33 EN

Reference List Floating Floors EN

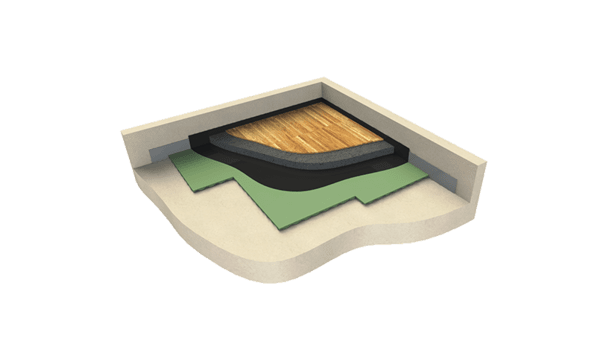

Floor build-up AFM 33
