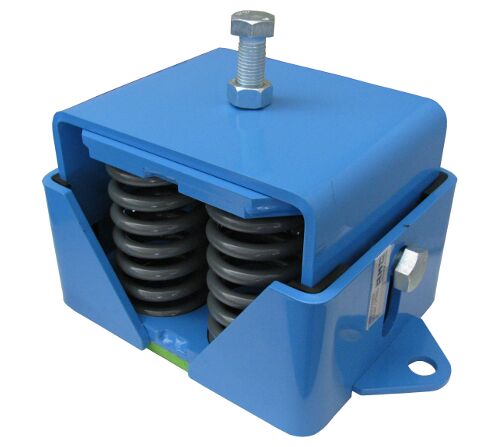

4 V-SH Anti Seismic

Product Description

This range of V-SH Anti Seismic mounts comprises:

  • A spring high elasticity and very low natural frequency.
  • An incorporated levelling system.
  • A non-slip rubber base.
  • A spare Sylomer to isolate mid and high frequencies comes standard.

The mounts are able to reach low natural frequencies from 2 to 5 Hz. The spring combined with sylomer® is able to provide high isolation at low and medium frequencies.

The curves are showing the deflection and natural frequencies according to the load of the spring. Temperature working range from -30 to 70º. Short term higher temperatures are possible.



4 V-SH Anti Seismic

Type

Spring color

Load (kg)

Code

Weight(kg)

4V-SH-268 ANTI SEISMIC + SYLOMER

BLUE

268

20752

20,883

4V-SH-380 ANTI SEISMIC + SYLOMER

WHITE

380

20753

20,883

4V-SH-492 ANTI SEISMIC + SYLOMER

BLACK

492

20754

20,883

4V-SH-692 ANTI SEISMIC + SYLOMER

BEIGE

692

20755

20,883

4V-SH-892 ANTI SEISMIC + SYLOMER

RED

892

20756

20,883

4V-SH-1340 ANTI SEISMIC + SYLOMER

GREY

1340

20757

20,883

4V-SH-1784 ANTI SEISMIC + SYLOMER

GREEN

1784

20758

20,883



Tech sheet
