Eccentric Bushing

Eccentric Bushing

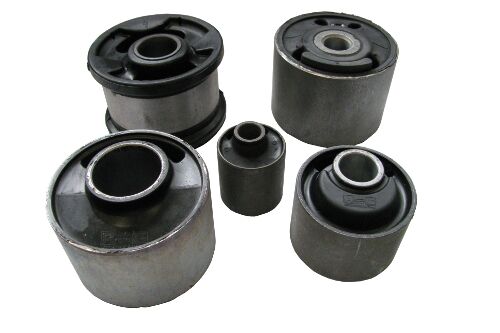

In eccentric bushings, the center points of the inner and outer cylinders are not the same. As a result it is more flexible in the direction of the main load and it keeps the same control in the other direction.

UNSPSC Codes: 23153130

Category:

Description

The eccentric bushing is available in two hardnesses, 45 and 60 sh.

 eccentric-drawings

Type

d(mm)

C(mm)

D(mm)

I(mm)

L(mm)

Weight(gr)

Shore

Max. Load(kg)

Code

MINI

16,2

6,1

48

50,5

64

311

45

110

154161

60

180

154163

SMALL

24

10,5

75,3

50,8

68

554

45

200

154159

60

390

154158

LARGE

43,7

9,5

101,6

63,4

72,4

1096

45

290

154154

60

510

154155

100 HD

–

–

–

–

–

1046

50

290

154181

55

350

154182

60

430

154183

70

565

154184

100 RD

–

–

–

–

–

1558

50

450

154175

TECHNICAL CHARACTERISTICS

  • Optimal vibration damping and isolation.
  • Fit to use for robust and safe constructions.
  • Simple installation and application.
  • Maximum load of bushing 45sh is about 300kg.
  • Maximum load of bushing 60sh is about 460kg.

APPLICATIONS

The AMC MECANOCAUCHO® eccentric bushing is best suited to the following situations and applications:

  • Tilting cab suspension.
  • -Suspension arms.

ELASTICAL PROPERTIES

ECCENTRIC BUSHINGS
