Bobbin – Type B

Bobbins are devices for making elastic anchorings or fixings. They can be used in a wide variety of applications, particularly for elastic suspensions and anti vibration isolation of machines and different mechanical organs. They are made of a block of rubber with two parallel metal parts at the end which enable it to be fixed either by screws in the ‘’C’’ model or with nuts in the ‘’A” model or a combination of both in the ‘’B” model.

Category:

Product Description

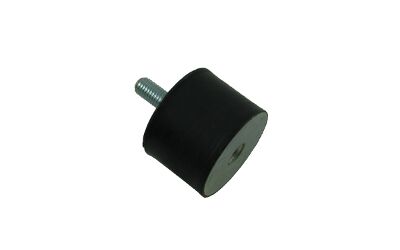

Bobbin type B

Depending on the size of the rubber block, the bobbin has more or less elasticity, which is greater particularly in all directions perpendicular to its axis (shear). The AMC Mecanocaucho® bobbing thus makes it possible to make joins which permit major relative movements, up to several millimeters (in the case of heat expansion, chassis deformations, etc.). The bobbin serves very well for the vibration isolation of machines where the vibrations are perpendicular to their axis, unless these stresses are too much when applied in this direction.

Bobbins are particularly suitable for installation on small motor-pumps, motor-ventilators, driers, sieves, compactors, washing machines, electrical motors, on-board control panels, measuring apparatuses, control cabinets, microphones, fluorescent tubes, etc.

Its elasticity is much greater in all the directions parallel to the armatures than in the perpendicular direction. The rubber works based on compression or shear depending on the direction it is placed at installation time. This direction is made according to the use and the objective. It is therefore installed with nuts or screws depending on the model chosen, with one part attached to the fixed chassis and the other to the machine to be suspended.

Male threaded mounts on one end and female threaded mount on the other.

Standard rubber and steel

bobbins-type-b-drawing

Type

A(mm)

B(mm)

C(mm)

H(mm)

Weight(kg)

COMPRESSIONLOAD Max. daN

COMPRESSION DEFLECT. mm

SHEAR LOAD Max. daN

SHEAR DEFLECT. mm

Code

BOBBINS TYPE B 12-25

12,5

10

M-5

10

0,005

12

2

1,5

1,5

121001

12,5

15

M-5

10

0,006

10

3

1,5

2

121002

12,5

20

M-5

10

0,007

8

3,5

1,5

4

121003

16

10

M-5

12

0,008

20

1,5

2,5

1,5

121011

16

15

M-5

12

0,01

20

3

2,5

2

121012

16

20

M-5

12

0,011

15

4

2,5

4

121013

16

25

M-5

12

0,012

15

5

2

5

121014

20

15

M-6

16,5

0,017

35

4

5

2,5

121022

20

20

M-6

16,5

0,018

30

5

5

3,5

121023

20

25

M-6

16,5

0,02

30

5,5

4,5

4,5

121024

20

30

M-6

16,5

0,021

25

7

4,5

4,5

121025

25,5

15

M-6

18

0,033

60

3,5

8

2,5

121172

25,5

20

M-6

18

0,034

55

4,5

8

3,5

121173

25,5

25

M-6

18

0,037

50

6

8

4,5

121174

25,5

30

M-6

18

0,038

50

8

8

6

121175

25,5

15

M-8

20

0,036

60

3,5

8

2,5

121031

25,5

19

M-8

20

0,037

55

4,5

8

3,5

121032

25,5

22

M-8

20

0,038

50

5,5

8

4

121033

25,5

25

M-8

20

0,039

50

6

8

4,5

121034

25,5

30

M-8

20

0,041

50

8

8

6

121035

25,5

40

M-8

20

0,046

50

10

10

6

121036

BOBBINS TYPE B 30-40

30

15

M-8

20

0,047

90

3

11

2,5

121041

30

22

M-8

20

0,049

80

5

11

4

121042

30

25

M-8

20

0,053

75

6,5

11

5

121186

30

30

M-8

20

0,056

70

8

11

6

121043

30

40

M-8

20

0,062

60

9

11

7,5

121044

40

20

M-8

20

0,078

160

5

20

3

121193

40

25

M-8

20

0,095

150

6

20

3,5

121194

40

28

M-8

20

0,098

150

6

20

5,5

121195

40

30

M-8

20

0,101

150

6

30

5,5

121196

40

35

M-8

20

0,102

120

8

20

6,5

121197

40

40

M-8

20

0,105

120

10

20

7,5

121198

40

45

M-8

20

0,12

120

11

20

9

121199

40

20

M-10

25

0,09

160

5

20

3

121051

40

25

M-10

25

0,099

150

6

20

3,5

121191

40

28

M-10

25

0,103

150

6

20

5,5

121052

40

30

M-10

25

0,103

150

6

30

5,5

121192

40

35

M-10

25

0,105

120

8

20

6,5

121053

40

40

M-10

25

0,109

120

10

20

7,5

121054

40

45

M-10

25

0,125

120

11

20

9

121055

BOBBINS TYPE B 50-75

50

20

M-10

25

0,124

300

5

25

3,5

121201

50

25

M-10

25

0,128

300

6

25

4,5

121061

50

30

M-10

25

0,141

275

7

25

6,5

121202

50

35

M-10

25

0,151

250

8

25

7

121062

50

40

M-10

25

0,162

210

10

25

8

121203

50

45

M-10

25

0,173

190

11

25

9

121063

50

50

M-10

25

0,192

170

11

25

10,5

121204

50

60

M-10

25

0,202

150

11

25

12

121064

60

25

M-10

25

0,204

400

6

30

4,5

121071

60

36

M-10

25

0,238

300

9

30

7

121072

60

45

M-10

25

0,264

250

11

30

9

121073

60

60

M-10

25

0,311

200

12

30

10

121074

70

35

M-10

25

0,311

450

8

35

6,5

121081

70

50

M-10

25

0,371

350

11

35

11

121082

70

60

M-10

25

0,416

300

12

35

13

121083

70

70

M-10

25

0,479

300

14

35

15

121084

75

25

M-12

30

0,301

650

7

37

5

121091

75

40

M-12

30

0,384

500

9

37

7

121092

75

45

M-12

30

0,411

500

10

37

9

121093

75

55

M-12

30

0,455

450

11

37

11

121094

BOBBINS TYPE B 80-150

80

30

M-14

35

0,445

950

7

40

5

121101

80

40

M-14

35

0,505

600

9

40

7

121102

80

50

M-14

35

0,521

550

10

40

8

121103

80

55

M-14

35

0,544

550

11

40

9

121104

80

70

M-14

35

0,648

500

13

40

15

121105

80

75

M-14

35

0,687

450

14

40

16

121106

95

40

M-16

45

0,769

1200

8

60

7

121111

95

55

M-16

45

0,88

1000

11

60

8

121112

95

60

M-16

45

0,888

800

12

60

10

121113

95

75

M-16

45

1,087

700

13

60

14

121114

105

50

M-16

45

0,927

1200

9

80

9

121121

105

75

M-16

45

1,208

1000

13

80

14

121122

105

100

M-16

45

1,422

800

16

80

16

121123

120

50

M-16

45

1,078

1500

9

100

9

121131

120

75

M-16

45

1,407

1200

13

100

14

121132

120

100

M-16

45

1,834

1000

16

100

16

121133

130

50

M-16

45

1,591

1600

9

120

9

121142

130

75

M-16

45

2,039

1450

13

120

14

121143

130

100

M-16

45

2,426

1200

16

120

16

121144

150

50

M-20

50

3,301

1800

9

140

9

121151

150

75

M-20

50

4,001

1650

13

140

14

121152

150

100

M-20

50

–

1400

16

140

16

121153
