9 AMC Anti Seismic

Product Description

These anti seismic support mounts are made of mechanical anchoring systems which protect your unit for static applications and provide high reliability for the isolation of low frequency vibrations.

In addition to its resistance, these pieces offer the following advantages:

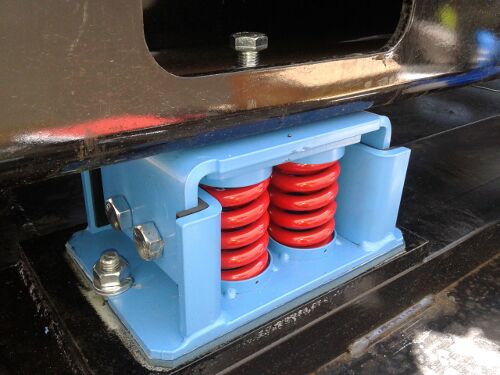

TRANSPORT SAFETY: Vibrabsorber seismic brackets feature a locking device, so that the brackets are locked during the transport of the machine.

NOISE ISOLATION STRUCTURE: The microcellular polyurethane Sylomer® pad these supports have under their base insulates the mid and high frequencies that are transmitted by the spring.

antisismico_9_amc-drawing

Type

Code

No. Springs

Spring color

DEFLECTION mm

Weight(kg)

LOAD kg MAX

9 AMC ANTI-SEISMIC

20961

9

PURPLE

22

2745

20962

9

GREEN

22

3645

20963

9

GREY

22

4860

20964

9

WHITE

22

5508

20965

9

RED

22

7227

9 AMC ANTI-SEISMIC + SYLOMER

20992

9

PURPLE

22

2745

20993

9

GREEN

22

3645

20994

9

GREY

22

4860

20995

9

WHITE

22

5508

20996

9

RED

22

7227
