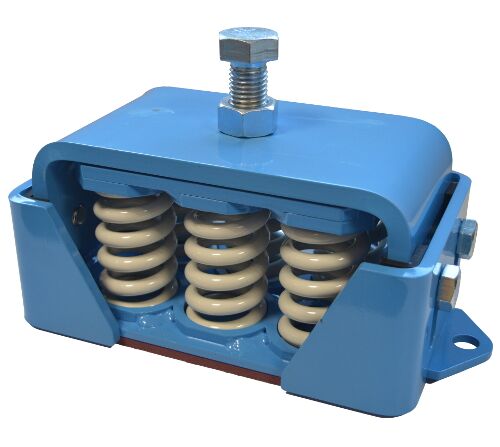

6 AMC Anti Seismic

Product Description

These anti seismic support mounts are made of mechanical anchoring systems which protect your unit for static applications and provide high reliability for the isolation of low frequency vibrations.

In addition to its resistance, these pieces offer the following advantages:

TRANSPORT SAFETY: Vibrabsorber seismic brackets feature a locking device, so that the brackets are locked during the transport of the machine.

NOISE ISOLATION STRUCTURE: The microcellular polyurethane Sylomer® pad these supports have under their base insulates the mid and high frequencies that are transmitted by the spring.

antisismico_6_amc-drawing

Type

Code

No. Springs

Spring color

DEFLECTION mm

Weight(kg)

LOAD kg MAX

6 AMC ANTI-SEISMIC

20761

6

PURPLE

22

1830

20762

6

GREEN

22

2430

20763

6

GREY

22

3240

20764

6

WHITE

22

3672

20765

6

RED

22

4818

6 AMC ANTI-SEISMIC + SYLOMER

20766

6

PURPLE

22

1830

20767

6

GREEN

22

2430

20768

6

GREY

22

3240

20769

6

WHITE

22

3672

20770

6

RED

22

4818
