4 AMC Anti Seismic
amc_antiseismicantisismico_42antisismico_44antisismico_41antisismico_43antisismico_45

4 AMC Anti Seismic

Product Description

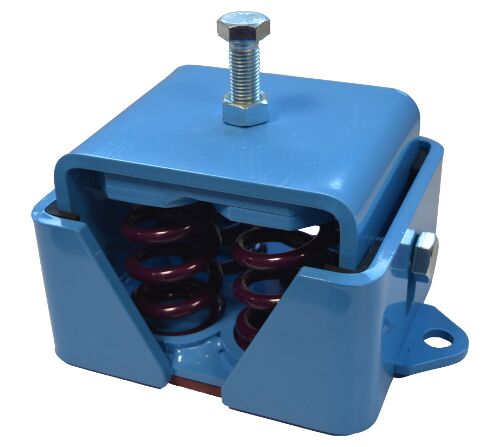

These anti seismic support mounts are made of mechanical anchoring systems which protect your unit for static applications and provide high reliability for the isolation of low frequency vibrations.

In addition to its resistance, these pieces offer the following advantages:

TRANSPORT SAFETY: Vibrabsorber seismic brackets feature a locking device, so that the brackets are locked during the transport of the machine.

NOISE ISOLATION STRUCTURE: The microcellular polyurethane Sylomer® pad these supports have under their base insulates the mid and high frequencies that are transmitted by the spring.

antisismico_4_amc-drawing

Type

Code

No. Springs

Spring color

DEFLECTION mm

Weight(kg)

LOAD kg MAX

4 AMC ANTI-SEISMIC

20700

4

PURPLE

22

1220

20696

4

GREEN

22

1620

20697

4

GREY

22

2160

20698

4

WHITE

22

2448

20699

4

RED

22

3212

4 AMC ANTI-SEISMIC + SYLOMER

20686

4

PURPLE

22

1220

20687

4

GREEN

22

1620

20688

4

GREY

22

2160

20689

4

WHITE

22

2448

20690

4

RED

22

3212

Tech sheet

4 AMC Anti Seismic

Installation Instructions

Anti Seismic Supports - AMC
