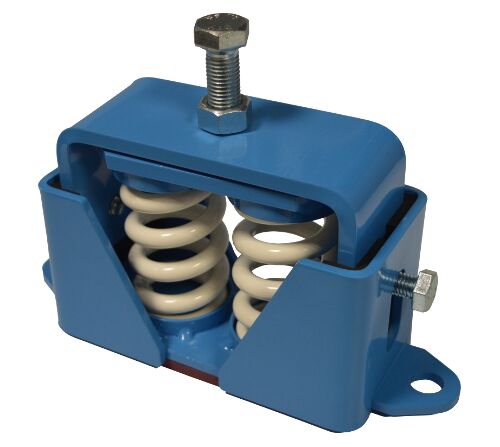

2 AMC Anti Seismic

Product Description

These anti seismic support mounts are made of mechanical anchoring systems which protect your unit for static applications and provide high reliability for the isolation of low frequency vibrations.

In addition to its resistance, these pieces offer the following advantages:

TRANSPORT SAFETY: Vibrabsorber seismic brackets feature a locking device, so that the brackets are locked during the transport of the machine.

NOISE ISOLATION STRUCTURE: The microcellular polyurethane Sylomer® pad these supports have under their base insulates the mid and high frequencies that are transmitted by the spring.

antisismico_2_amc-drawing

Type

Code

No. Springs

Spring color

DEFLECTION mm

Weight(kg)

LOAD kg MAX

2 AMC ANTI-SEISMIC

20494

2

PURPLE

22

4,819

610

20496

2

GREEN

22

4,919

810

20497

2

GREY

22

5,011

1080

20498

2

WHITE

22

5,142

1224

20500

2

RED

22

5,337

1606

2 AMC ANTI-SEISMIC + SYLOMER

20480

2

PURPLE

22

4,869

610

20487

2

GREEN

22

4,97

810

20488

2

GREY

22

5,192

1080

20489

2

WHITE

22

5,06

1224

20490

2

RED

22

5,386

1606
