Description

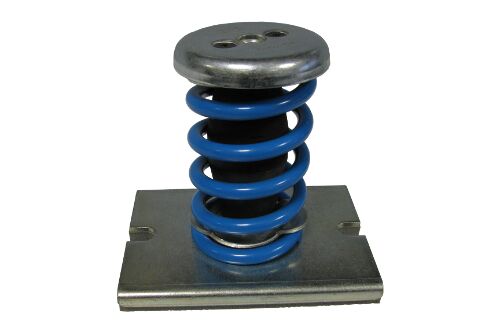

Vibrasorber 1 AMC
Spring mounting is necessary in all machinery, which, by virtue of its design, has reciprocating or rotating parts, creates vibration to some degree through the imbalance of the moving parts.
This vibration produced by a machine leads to different problems, such as a reduction in the machine’s useful life through part wear, plus the transmission of this vibration to other non-insulated adjacent structures, giving rise to problems of noise and vibration transmission. It is therefore important to install a spring mount to machinery.
Vibrasorber AMC mounts offer both a standard mount and a Sylomer base variant if required. Please select the appropriate spring and base configuration to suit your application. Contact us for assistance if required.
Vibrasorber 1 AMC +Sylomer
|
Type |
A(mm) |
B(mm) |
Spring color |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
Max. Load(kg) |
Code |
Weight(kg) |
|
1 AMC 150+Sylomer® |
75 |
127 |
BLUE |
M-12 |
100 |
120 |
12 |
140 |
150 |
20371 |
1,102 |
|
1 AMC 200+Sylomer® |
75 |
127 |
WHITE |
M-12 |
100 |
120 |
12 |
140 |
200 |
20372 |
1,138 |
|
1 AMC 250+Sylomer® |
75 |
127 |
BLACK |
M-12 |
100 |
120 |
12 |
140 |
250 |
20373 |
1,225 |
|
1 AMC 350+Sylomer® |
75 |
127 |
CREAM |
M-12 |
100 |
120 |
12 |
140 |
350 |
20374 |
1,392 |
|
1 AMC 500+Sylomer® |
93 |
127 |
LIGHT GREY |
M-14 |
100 |
120 |
12 |
140 |
500 |
20375 |
2,56 |
|
1 AMC 750+Sylomer® |
93 |
127 |
GREEN |
M-14 |
100 |
120 |
12 |
140 |
750 |
20376 |
3,036 |
Vibrasorber 1 AMC mounts
|
Type |
A(mm) |
B(mm) |
Spring color |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
Max. Load(kg) |
Code |
Weight(kg) |
|
1 AMC 150 |
75 |
122 |
BLUE |
M-12 |
80 |
87 |
10 |
115 |
150 |
20301 |
1,102 |
|
1 AMC 200 |
75 |
122 |
WHITE |
M-12 |
80 |
87 |
10 |
115 |
200 |
20311 |
1,138 |
|
1 AMC 250 |
75 |
122 |
BLACK |
M-12 |
80 |
87 |
10 |
115 |
250 |
20321 |
1,225 |
|
1 AMC 350 |
75 |
122 |
CREAM |
M-12 |
80 |
87 |
10 |
115 |
350 |
20331 |
1,392 |
|
Type |
A(mm) |
B(mm) |
Spring color |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
Max. Load(kg) |
Code |
Weight(kg) |
|
1 AMC 500 |
93 |
120 |
LIGHT GREY |
M-14 |
100 |
120 |
12 |
150 |
500 |
20341 |
2,56 |
|
1 AMC 750 |
93 |
120 |
GREEN |
M-14 |
100 |
120 |
12 |
150 |
750 |
20351 |
3,036 |
