SCB

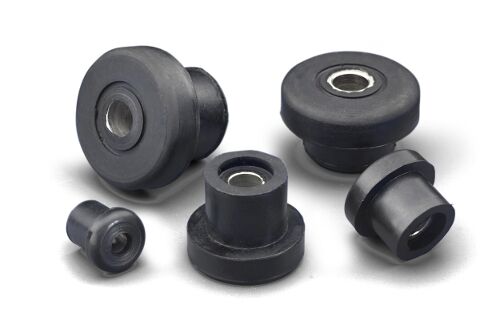

SCB anti vibration mounts are elements that work on the basis of compression loading . Due to their design and assembly they provide an anti-rebound effect, thus providing Fail Safe conditions on assembly.

UNSPSC Codes: 23153130

Description

SCB anti vibration mounts are elements that work on the basis of compression loading.



scb_drawing

Type

A(mm)

B(mm)

C(mm)

D(mm)

F(mm)

Q(mm)

T (Max.)

T (Min.)

Weight(gr)

R(mm)

Load (kg)

Shore

Code

SCB 20

27

15,5

10

20

6,5

19,5

5

4

20

1

30

45 Sh

138013

38

60 Sh

138019

SCB 20i

27

15,5

8

20

6,5

19,5

5

4

20

1

38

60 Sh

138056

SCB 25

27

21

10

20

6,5

19,5

11

10

20

1

50

60 Sh

138001

SCB 35

27,5

12,5

8

19,4

7

19

4

3

30

0,5

25

45 Sh

138012

SCB 38

34,5

19

10,5

20,5

11,5

20,5

5

3

30

0,5

50

60 Sh

138043

80

75 Sh

138044

SCB 40

35

15,5

13

27

7

26,5

5

4

50

1

75

60 Sh

138022

SCB 45

42

25

13,5

31

10,5

30

11

10

56

1,5

100

60 Sh

138002

SCB 50

49

35

13,5

34

13,5

33

17

16

73

1,5

200

60 Sh

138003

SCB 60

63

31,2

16,2

41

16

40

10

9

108

3

250

60 Sh

138004

SCB 65

62

44,5

16,5

40

17

39

20

19

140

3

250

60 Sh

138005

SCB 95

92

51,5

20,5

56

26

54,5

20

19

395

3

1000

65 Sh

138011

arandela_scb

With the use of upper an lower assembly washers supplied it makes them highly recommendable for rough terrain vehicle safety purposes.

Type

Øext(mm)

Øint(mm)

THICKNESS(mm)

Weight(kg)

Code

SCB 20 WASHER

28

10,5

2

0,03

606185

SCB 20i WASHER

28

8,5

2

0,03

606124

SCB 25 WASHER

28

8,5

2

0,03

606124

SCB 35 WASHER

28

8,5

2

0,03

606124

SCB 38 WASHER

38

12,5

3

0,04

611065

SCB 40 WASHER

38

12,5

3

0,04

611065

SCB 45 WASHER

54

12,5

3

0,051

611080

SCB 50 WASHER

54

12,5

3

0,051

611080

SCB 60 WASHER

66

16,5

5

0,125

606130

SCB 65 WASHER

66

16,5

5

0,125

606130

SCB 95 WASHER

95

22

6

0,31

608101

TECHNICAL CHARACTERISTICS

  • Easy to assemble.
  • Simple and economical product.
  • Wide range of loads.

With the use of upper an lower assembly washers supplied it makes them highly recommendable for rough terrain vehicle safety purposes.

OPERATION AND ASSEMBLY

SCB Anti vibration mounts

Washers should be used, if the rubber surface is not covered with the contact surface.

ELASTICAL PROPERTIES

SCB Anti vibration mounts
